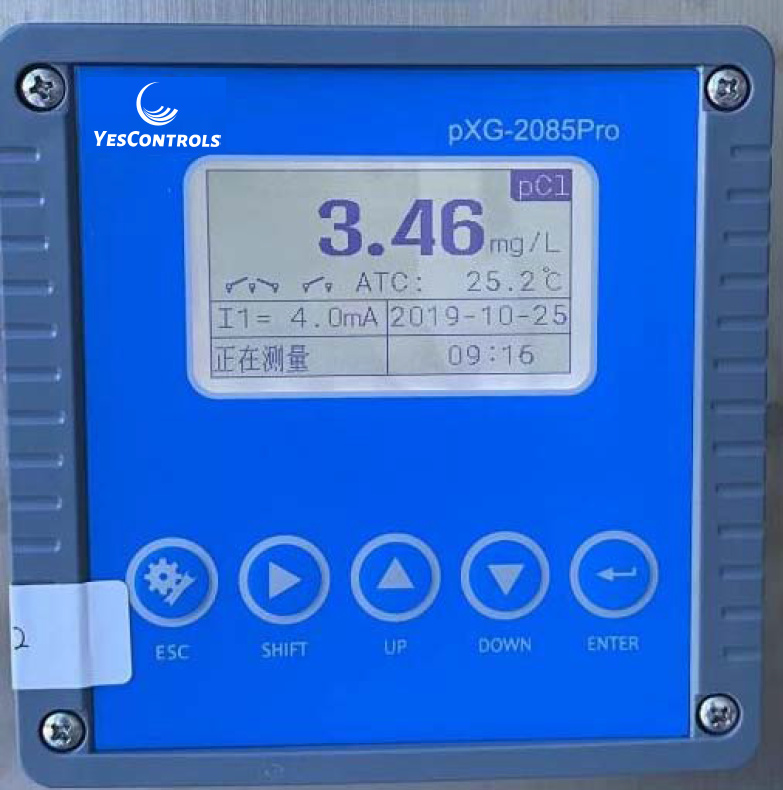

YesControls PXG-2085 Online Ion Analyzer
Measuring principle:
The PF2085 online ion composite electrode is composed of a single crystal membrane, a PTFE annular liquid junction and a solid electrolyte. It has the characteristics of pressure resistance and pollution resistance. The on-line ion electrode is an indicator electrode for measuring the concentration of ions in the aqueous solution or measuring the concentration of ions that can form a cryptographic complex with ions. It is widely used in the field of wastewater treatment process control and emission monitoring in semiconductor materials, solar materials, metallurgical industry, ioncontaining electroplating and other industries.
Features:
The controller is compatible with various ion electrodes such as F, Cl, etc., automatic identification, clear identification, and convenient connection;
High precision, suitable for drinking water, surface water and other scenes;
Wide measurement range, with a measuring range of about 104, which can cover various scenarios such as pure water, drinking water, circulating water, sewage, etc.;
Digital sensor, strong anti-interference ability and long transmission distance;
Standard digital signal output, which can realize integration and networking with other equipment without a transmitter;
The sensor is easy to install on site, and the upper and lower standard 3/4 pipe threads;
Complete functions, data transmission protocol including 4-20mA and RS485, supports two relays
The instrument interface is simple, the interface operation instructions are cleaned, and it supports switching between Chinese and English;
Equipped with a special circulation cup, it can quickly reach stability under the recommended flow rate;
Support one-point and two-point calibration, easy to clean during calibration;

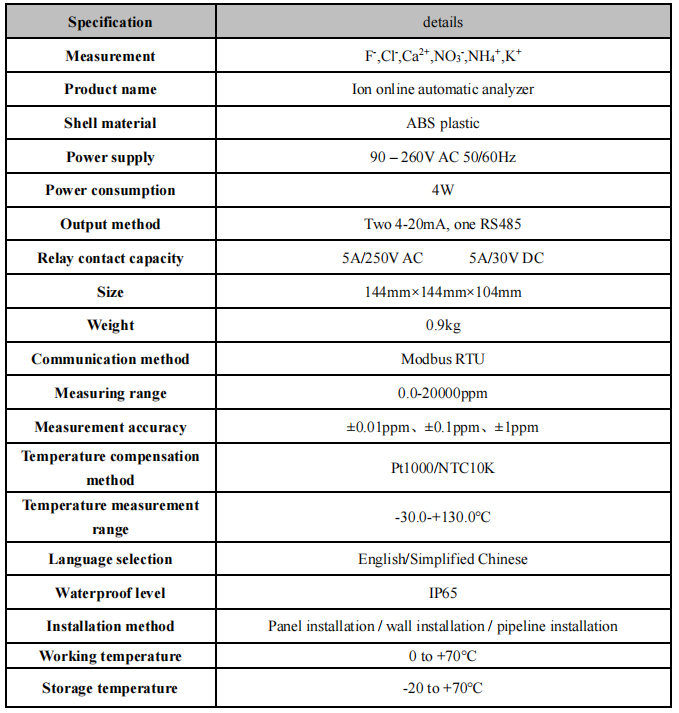

Controller technical parameters:
Typical application：
Online monitoring of fluoride ions at the import and export of water plants, drinking water sources, etc.;
Process of fluoride ion replacement section in industrial circulating water;
Enterprise wastewater discharge outlet;
Wastewater treatment process in semiconductor, metallurgy, and fluorine electroplating industries;
Hot spring water, mineral water, etc.
Groundwater monitoring, etc

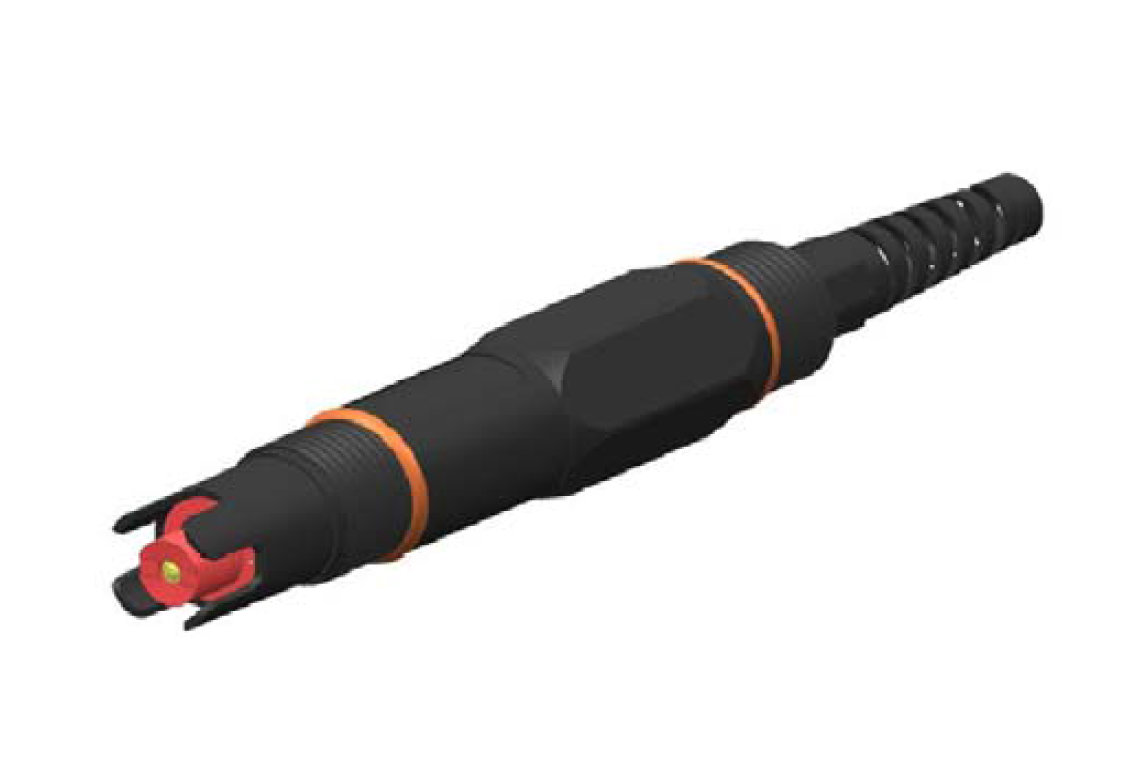

Introduction: Ion Sensor is a Analog electrode, Housing material is corrosion-resistant (PPS+POM),suitable for most water quality monitoring environments;This online ion sensor uses an industrial-grade composite electrode, the reference electrode double salt bridge design and have longer working life;Built-in temperature sensor and compensation algorithm, high precision; It has been widely used in domestic and foreign scientific research institutions, chemical production, agricultural fertilizer, and organic wastewater industries. It is used for the detection of general sewage, waste water and surface water. It can be installed in sink or flow tank.

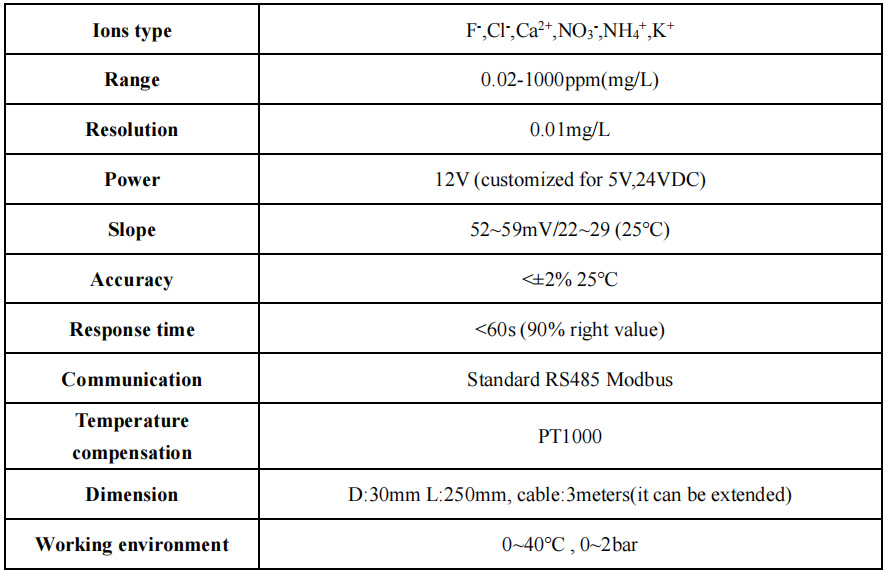

Technical Specification:

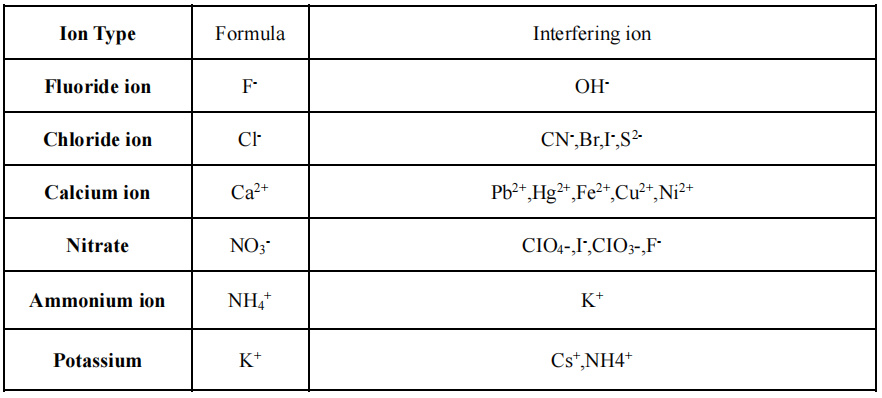

Reference Ion:
