features
Use a pressure gauge ranging from 0 to 60 psi to assist in measuring water pressure, hydraulic pressure, oil pressure, and air pressure. The water/pressure gauge is equipped with a dual scale display screen, a measurement range of 0-4bar, a dial diameter of 40mm, stainless steel material, 1/8 "BSPT thread specification, waterproof, and is an ideal choice for pressure testing in the metallurgical, power, petroleum, and chemical industries.
Technical indicators
Pressure gauge, with a diameter of 40mm dial, 1/8 installation diameter, BSPT thread, measuring range of 0~60psi&0~4bar.
1. 0-60psi pressure gauges can be used as water pressure gauges, air pressure gauges, hydraulic gauges, and oil pressure gauges.
2. The circular dial adopts a stainless steel shell, which is corrosion-resistant. The diaphragm pressure gauge provides clear readings and is weather resistant.
3. Brass and stainless steel fittings for measuring the pressure of non corrosive liquids and gases. Such as pressure testing for water, oil, fuel, coolant, air, CO2, nitrogen, argon, etc.

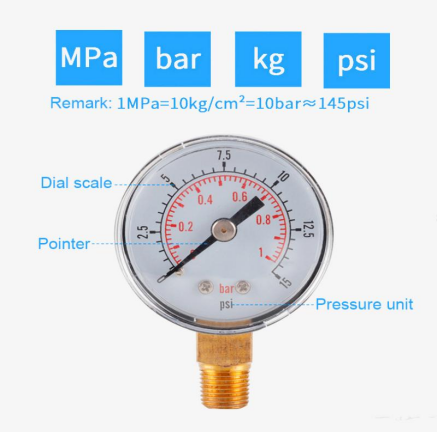

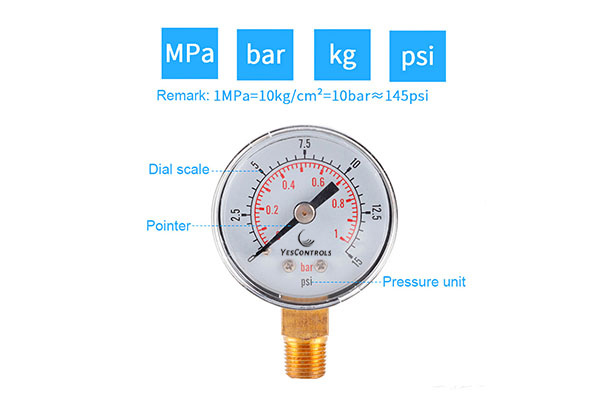

4. Dual scale pressure gauge (0~60 psi/0~4 bar). The display accuracy is 2.5% across the entire instrument range.

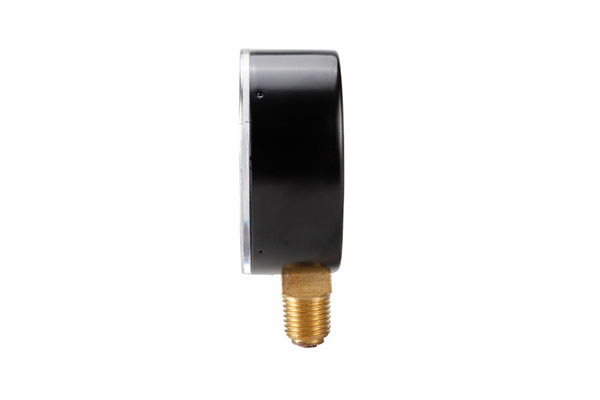

5. It also features a lower mounted male connector with 1/8 "BSPT thread.
application
A pressure gauge is a commonly used measuring instrument for displaying and controlling pressure. Diaphragm pressure gauges are widely used in industries such as chemical, petroleum, metallurgy, mining, and power production, especially in automotive repair workshops, heat pipe networks, water and gas supply systems, etc.
common problem
Q1: What is a pressure gauge?
A1: A pressure gauge refers to an instrument that uses elastic elements as sensitive components to measure and indicate pressures higher than the environment. It is used in almost all industrial processes and research fields, mainly for thermal pipelines, oil and gas transportation, water and gas supply systems, and vehicle maintenance. Mechanical pressure gauges, especially in industrial process control and technical measurement processes, are becoming increasingly popular due to their high mechanical strength and easy production of elastic sensitive components in maintenance workshops.
Q2: How does a pressure gauge work?
A2: The pressure gauge transmits pressure deformation to the pointer through the elastic deformation of sensitive components inside the watch (Bourdon tube, diaphragm box, bellows), and then rotates the pointer through the conversion mechanism of the watch movement to display pressure. This is the working principle of a pressure gauge.
Q3: What is a pressure gauge used for?
A3: Pressure gauges are both pressure gauges and water pressure gauges, mainly used for pressure detection in industries such as metallurgy, power, petroleum, chemical, light industry, and machinery. The pressure gauge relies on measures such as internal filling of damping oil and supporting buffering devices, which have good impact resistance. Suitable for situations where the pressure of the measured medium undergoes strong pulse changes or pressure shocks, and is often suddenly unloaded in the measured medium. The production process and environmental vibrations. Pressure gauges can measure the average pulsating pressure of gases and liquids, thereby overcoming the damage caused by strong pulses of the medium and environmental vibrations, and ensuring the accuracy of readings.
Tip: Why use a pressure gauge to measure tire pressure?
Due to the cold weather, after the tires have not been inflated for a long time, the monitoring of car tire pressure can only rely on the alarm indicator light, rather than displaying detailed pressure values for detecting tire pressure. In summer, the cold tire pressure is about 15% lower than normal, which will reduce the tire pressure for long-distance driving, and the tire pressure can be easily lowered to a low limit. The pressure gauge can be used as a tire pressure gauge. If the tire pressure is too high, tire blowouts can occur at any time and cause serious tire wear. Therefore, it is necessary to check tire pressure in different seasons.
Technical indicators
Model: YES-TS-Y408-60psi.
Dial diameter: 40mm.
Installation method: radial.
Range: 0~60 psi, 0~4 bar.
Installation diameter: 1/8.
Thread specification: BSPT.
Size: 6x4x2.5cm.
Material: Stainless steel.
Packaging size: 8.5x6.5x4.5cm.
Product weight: 44g.
Packaging weight: 60 grams.

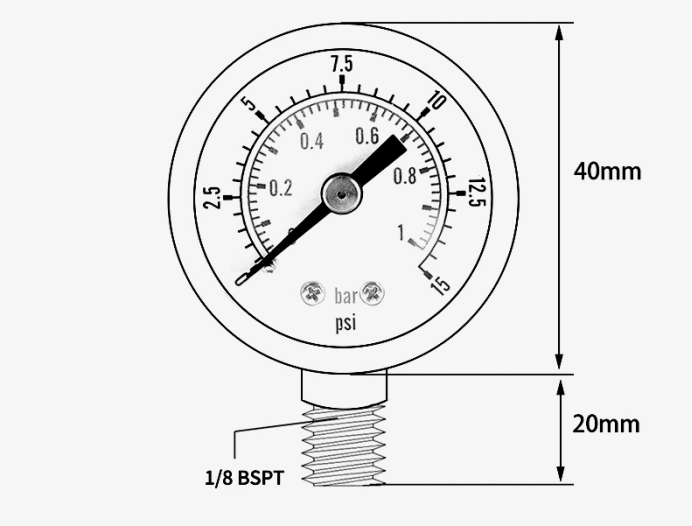

External dimensions
