The best pressure gauge for online sales. 0-300psi pressure gauge, dual scale display, measurement range of 0-20bar, dial diameter of 40mm, stainless steel material, 1/8 "BSPT thread specification, diaphragm pressure gauge, mainly used for pressure detection in mining, smelting, medical, maintenance and other fields.
Pressure gauge, with a diameter of 40mm dial, 1/8 installation diameter, BSPT thread, measuring range of 0~300psi&0~20bar.
1. 0-300psi pressure gauges can be used as water pressure gauges, air pressure gauges, hydraulic gauges, and oil pressure gauges.
2. The circular dial adopts a stainless steel shell, which is corrosion-resistant. The diaphragm pressure gauge provides clear readings and is weather resistant.
3. Brass and stainless steel fittings for measuring the pressure of non corrosive liquids and gases. Such as pressure testing for water, oil, fuel, coolant, air, CO2, nitrogen, argon, etc.

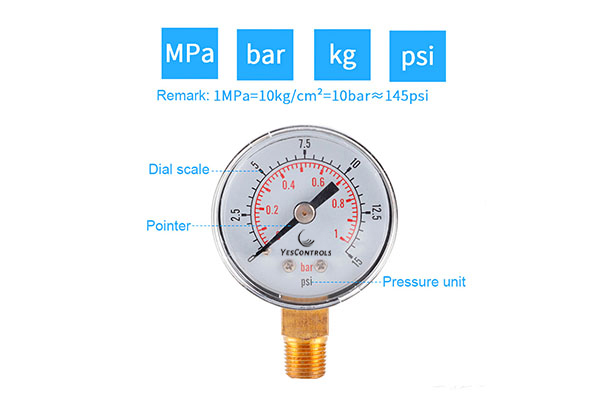

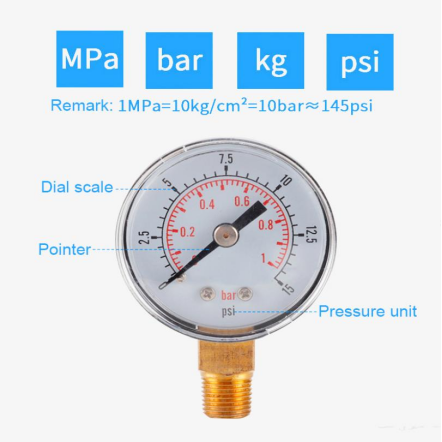

4. Dual scale pressure gauge (0~300psi/0~20bar). The display accuracy is 2.5% across the entire instrument range.

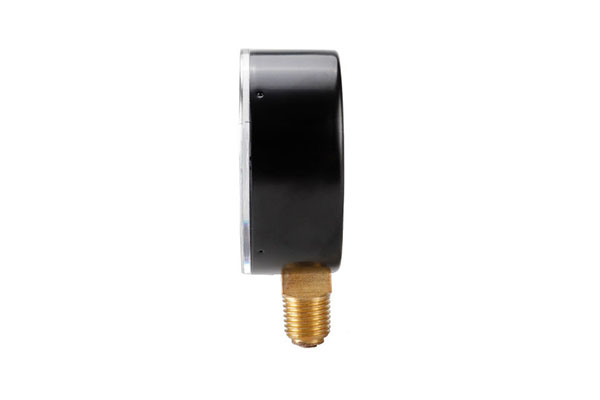

5. It also features a lower mounted male connector with 1/8 "BSPT thread.

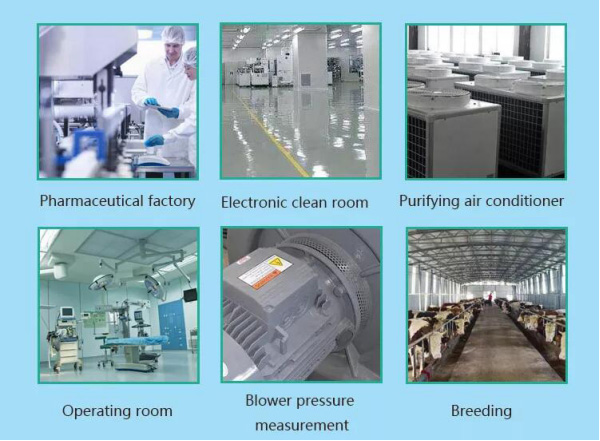

application
A pressure gauge is a commonly used measuring instrument for displaying and controlling pressure. Diaphragm pressure gauges are widely used in industries such as chemical, petroleum, metallurgy, mining, and power production, especially in automotive repair workshops, heat pipe networks, water and gas supply systems, etc.
common problem
Q1: What is a pressure gauge?
A1: A pressure gauge refers to an instrument that uses elastic elements as sensitive components to measure and indicate pressures higher than the environment. It is used in almost all industrial processes and research fields, mainly for thermal pipelines, oil and gas transportation, water and gas supply systems, and vehicle maintenance. Mechanical pressure gauges, especially in industrial process control and technical measurement processes, are becoming increasingly popular due to their high mechanical strength and easy production of elastic sensitive components in maintenance workshops.
Q2: How does a pressure gauge work?
A2: The pressure gauge transmits pressure deformation to the pointer through the elastic deformation of sensitive components inside the watch (Bourdon tube, diaphragm box, bellows), and then rotates the pointer through the conversion mechanism of the watch movement to display pressure. This is the working principle of a pressure gauge.
Q3: What is a pressure gauge used for?
A3: Pressure gauges are both pressure gauges and water pressure gauges, mainly used for pressure detection in industries such as metallurgy, power, petroleum, chemical, light industry, and machinery. The pressure gauge relies on measures such as internal filling of damping oil and supporting buffering devices, which have good impact resistance. Suitable for situations where there are strong pulse changes or pressure shocks in the measured medium pressure, sudden unloading during production, and environmental vibrations. Pressure gauges can measure the average pulsating pressure of gases and liquids, thereby overcoming the damage caused by strong pulses of the medium and environmental vibrations, and ensuring the accuracy of readings.
Kind reminder: According to the different measuring media, pressure gauges can be divided into:
1. General pressure gauge: General pressure gauges are used to measure the pressure of liquids, gases, or vapors that are non explosive, non crystalline, non solidifying, and non corrosive to copper and copper alloys.
2. Corrosion resistant pressure gauge: Corrosion resistant pressure gauges are used to measure the pressure of corrosive media, and commonly used ones include stainless steel pressure gauges, diaphragm pressure gauges, etc.
3. Explosion proof pressure gauge: Explosion proof pressure gauges are used in hazardous areas with explosive mixtures in the environment, such as explosion-proof electrical contact pressure gauges, explosion-proof transmitters, etc.
4. Special pressure gauge.
Technical indicators
Model: YES-TS-Y408-300psi.
Dial diameter: 40mm.
Installation method: radial.
Range: 0~300 psi, 0~20 bar.
Installation diameter: 1/8.
Thread specification: BSPT.
Size: 6x4x2.5cm.
Material: Stainless steel.
Packaging size: 8.5x6.5x4.5cm.
Product weight: 44g.
Packaging weight: 60 grams.

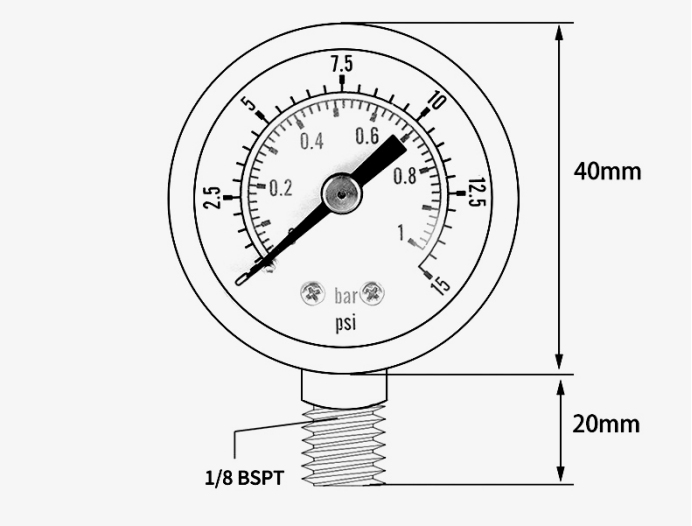

External dimensions
