features
The 0 to 30 psi pressure gauge is designed to measure water pressure, hydraulic pressure, oil pressure, and air pressure. It offers a dual scale display screen, a measurement range of 0-2 bar, a 40mm dial diameter, and stainless steel material. Water/pressure gauge, 1/8 "BSPT thread specification, suitable for mining, smelting, medical, maintenance, etc.
Pressure gauge, with a diameter of 40mm dial, 1/8 installation diameter, BSPT thread, measuring range of 0~30psi&0~2bar.
1. The 0-30psi pressure gauge can be used as a water pressure gauge, air pressure gauge, hydraulic gauge, and oil pressure gauge.
2. The circular dial adopts a stainless steel shell, which is corrosion-resistant. The diaphragm pressure gauge provides clear readings and is weather resistant.
3. Brass and stainless steel fittings for measuring the pressure of non corrosive liquids and gases. Such as pressure testing for water, oil, fuel, coolant, air, CO2, nitrogen, argon, etc.
4. Dual scale pressure gauge (0~30psi/0~2bar). The display accuracy is 2.5% across the entire instrument range.
5. It also features a lower mounted male connector with 1/8 "BSPT thread.
application

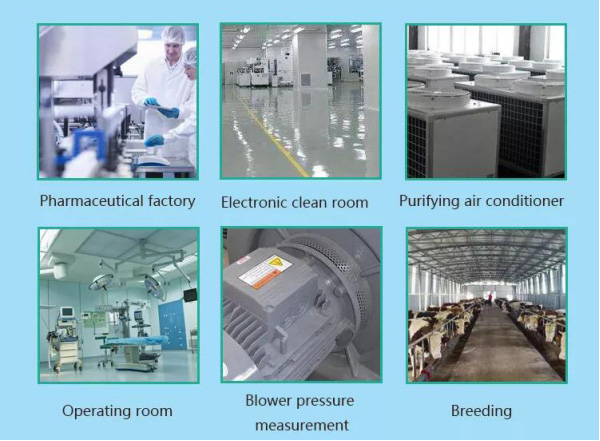

A pressure gauge is a commonly used measuring instrument for displaying and controlling pressure. Diaphragm pressure gauges are widely used in industries such as chemical, petroleum, metallurgy, mining, and power production, especially in automotive repair workshops, heat pipe networks, water and gas supply systems, etc.
common problem
Q1: What is a pressure gauge?
A1: A pressure gauge refers to an instrument that uses elastic elements as sensitive components to measure and indicate pressures higher than the environment. It is used in almost all industrial processes and research fields, mainly for thermal pipelines, oil and gas transportation, water and gas supply systems, and vehicle maintenance. Mechanical pressure gauges, especially in industrial process control and technical measurement processes, are becoming increasingly popular due to their high mechanical strength and easy production of elastic sensitive components in maintenance workshops.
Q2: How does a pressure gauge work?
A2: The pressure gauge transmits pressure deformation to the pointer through the elastic deformation of sensitive components inside the watch (Bourdon tube, diaphragm box, bellows), and then rotates the pointer through the conversion mechanism of the watch movement to display pressure. This is the working principle of a pressure gauge.
Q3: What is a pressure gauge used for?
A3: Pressure gauges are both pressure gauges and water pressure gauges, mainly used for pressure detection in industries such as metallurgy, power, petroleum, chemical, light industry, and machinery. The pressure gauge relies on measures such as internal filling of damping oil and supporting buffering devices, which have good impact resistance. Suitable for situations where the pressure of the measured medium undergoes strong pulse changes or pressure shocks, and there is frequent sudden unloading during production, as well as environmental vibrations. Pressure gauges can measure the average pulsating pressure of gases and liquids, thereby overcoming the damage caused by strong pulses of the medium and environmental vibrations, and ensuring the accuracy of readings.

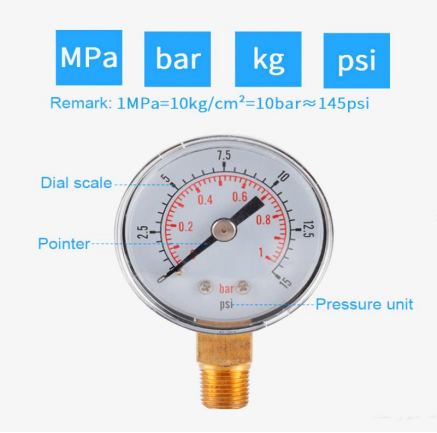

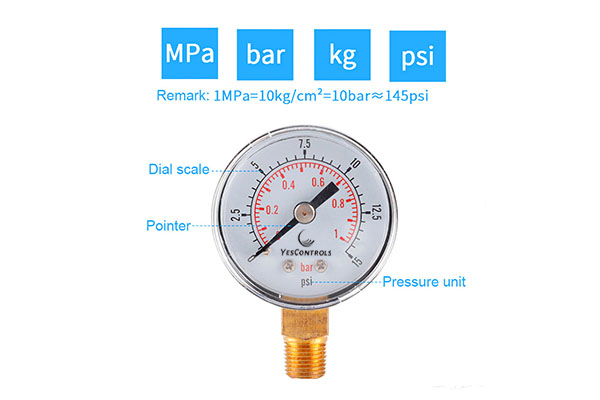

Tip: What do the bar and psi on the pressure gauge mean?
The rod of the pressure gauge is a unit of British pressure, which is the unit of tire pressure. PSI is the unit of pressure and is commonly used in countries such as Europe and America. Provide pressure gauges ranging from 0 to 300 psi and 0 to 20 bar.
Technical indicators
Model: YES-TS-Y408-30psi.
Dial diameter: 40mm.
Installation method: radial.
Range: 0~30 psi, 0~2 bar.
Installation diameter: 1/8.
Thread specification: BSPT.
Size: 6x4x2.5cm.
Material: Stainless steel.
Packaging size: 8.5x6.5x4.5cm.
Product weight: 44g.
Packaging weight: 60 grams.

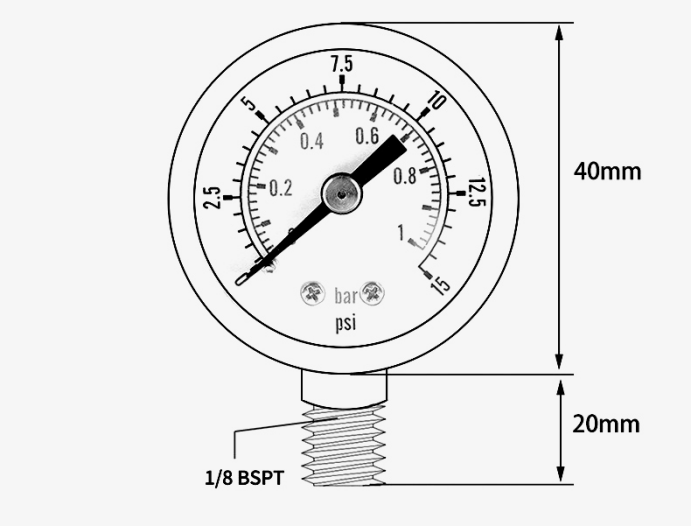

External dimensions
