features
The 40mm pressure gauge is designed to measure water pressure, hydraulic pressure, oil pressure, and air pressure. It provides a measurement range of 0 to 200 psi and 0 to 14 bar, and is made of stainless steel waterproof. Double scale diaphragm pressure gauge with 1/8 "BSPT thread specification, widely used in mining, smelting, medical, maintenance and other industries.
Pressure gauge, with a diameter of 40mm dial, 1/8 installation diameter, BSPT thread, measuring range of 0~200psi&0~14bar.
1. 0-200psi pressure gauges can be used as water pressure gauges, air pressure gauges, hydraulic gauges, and oil pressure gauges.
2. The circular dial adopts a stainless steel shell, which is corrosion-resistant. The diaphragm pressure gauge provides clear readings and is weather resistant.
3. Brass and stainless steel fittings for measuring the pressure of non corrosive liquids and gases. Such as pressure testing for water, oil, fuel, coolant, air, CO2, nitrogen, argon, etc.

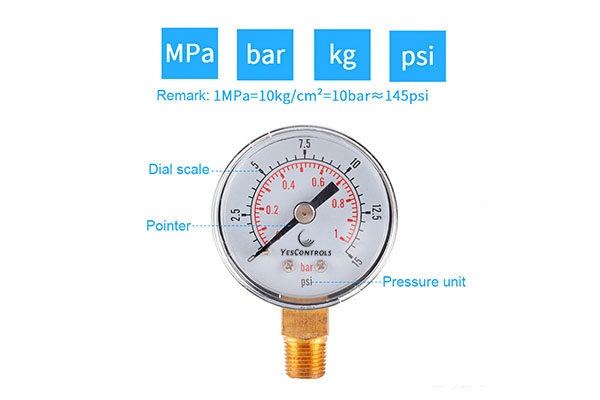

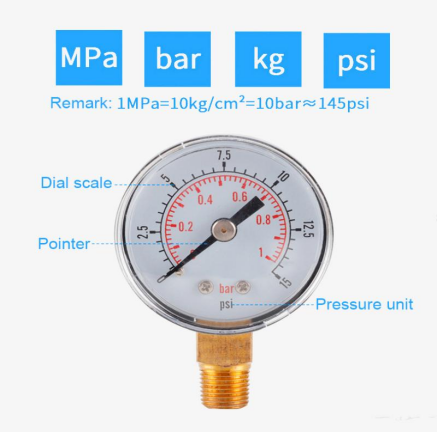

4. Dual scale pressure gauge (0~200psi/0~14bar). The display accuracy is 2.5% across the entire instrument range.
5. It also features a lower mounted male connector with 1/8 "BSPT thread.
application
A pressure gauge is a commonly used measuring instrument for displaying and controlling pressure. Diaphragm pressure gauges are widely used in industries such as chemical, petroleum, metallurgy, mining, and power production, especially in automotive repair workshops, heat pipe networks, water and gas supply systems, etc.
common problem
Q1: What is a pressure gauge?
A1: A pressure gauge refers to an instrument that uses elastic elements as sensitive components to measure and indicate pressures higher than the environment. It is used in almost all industrial processes and research fields, mainly for thermal pipelines, oil and gas transportation, water and gas supply systems, and vehicle maintenance. Mechanical pressure gauges, especially in industrial process control and technical measurement processes, are becoming increasingly popular due to their high mechanical strength and easy production of elastic sensitive components in maintenance workshops.
Q2: How does a pressure gauge work?
A2: The pressure gauge transmits pressure deformation to the pointer through the elastic deformation of sensitive components inside the watch (Bourdon tube, diaphragm box, bellows), and then rotates the pointer through the conversion mechanism of the watch movement to display pressure. This is the working principle of a pressure gauge.
Q3: What is a pressure gauge used for?
A3: Pressure gauges are both pressure gauges and water pressure gauges, mainly used for pressure detection in industries such as metallurgy, power, petroleum, chemical, light industry, and machinery. The pressure gauge relies on measures such as internal filling of damping oil and supporting buffering devices, which have good impact resistance. Suitable for situations where there is a strong pulse change or pressure shock in the measured medium pressure, and there is often sudden unloading during the production process, such as environmental vibration. Pressure gauges can measure the average pulsating pressure of gases and liquids, thereby overcoming the damage caused by strong pulses of the medium and environmental vibrations, and ensuring the accuracy of readings.
Select pressure gauge
Tip 1: When measuring special media such as viscosity or acidity, diaphragm pressure gauges, stainless steel spring tubes, stainless steel cores, stainless steel shells, or electric wood shells should be used. A 0 to 200 psi pressure gauge is an excellent choice for you.
When installing against a wall, a pressure gauge with edges should be selected.
When directly installed on the pipeline, an edgeless pressure gauge should be selected.
When used for direct gas measurement, a pressure gauge with a safety hole on the back of the housing should be selected.
5. The diameter of the casing should be carefully selected, taking into account the location of pressure measurement and observation management.
Technical indicators
Model: YES-TS-Y408-200psi.
Dial diameter: 40mm.
Installation method: radial.
Range: 0~200 psi, 0~14 bar.
Installation diameter: 1/8.
Thread specification: BSPT.
Size: 6x4x2.5cm.
Material: Stainless steel.
Packaging size: 8.5x6.5x4.5cm.
Product weight: 44g.
Packaging weight: 60 grams.

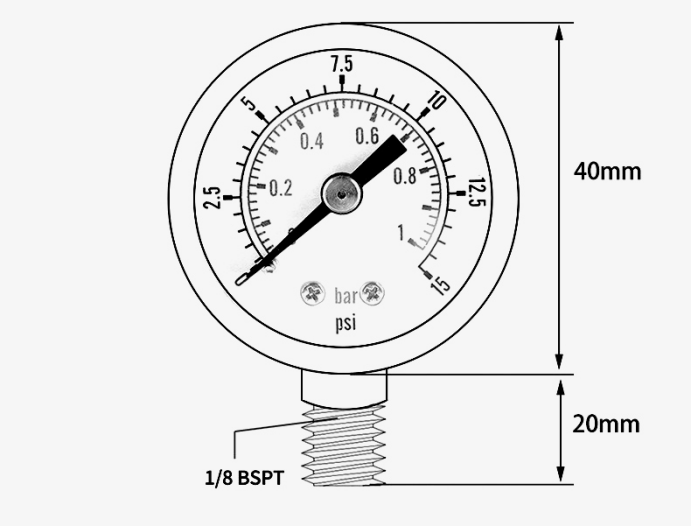

External dimensions
