features
A pressure gauge is a highly compact instrument used to measure water pressure, hydraulic pressure, oil pressure, and air pressure. Dual scale display, 0~7 bar measurement range, 40mm dial diameter, stainless steel material, providing 1/8 "BSPT thread specification, 0-100psi pressure gauge widely used in mining, smelting, medical, maintenance and other industries.
Pressure gauge, with a diameter of 40mm dial, 1/8 installation diameter, BSPT thread, measuring range of 0~100psi&0~7bar.
1. A 0-100psi pressure gauge can be used as a water pressure gauge, air pressure gauge, hydraulic gauge, and oil pressure gauge.

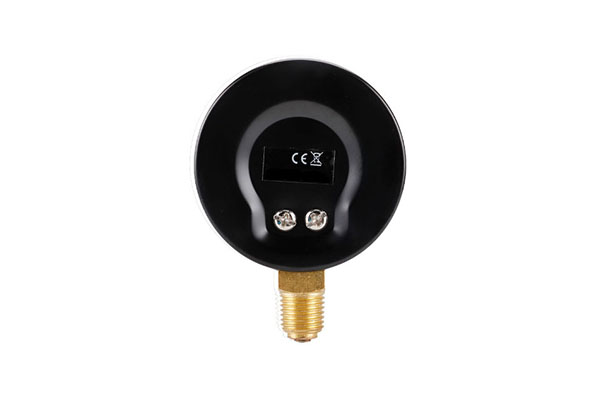

2. The circular dial adopts a stainless steel shell, which is corrosion-resistant. The diaphragm pressure gauge provides clear readings and is weather resistant.
3. Brass and stainless steel fittings for measuring the pressure of non corrosive liquids and gases. Such as pressure testing for water, oil, fuel, coolant, air, CO2, nitrogen, argon, etc.

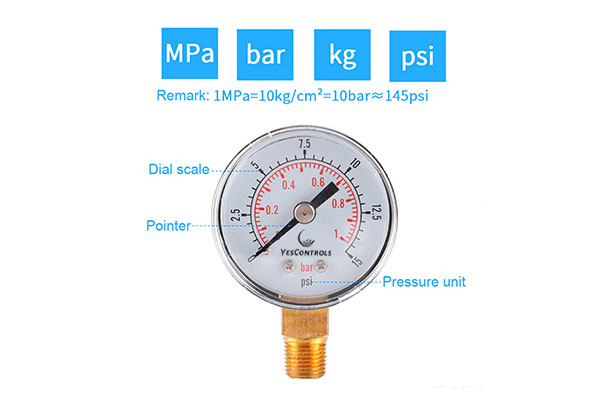

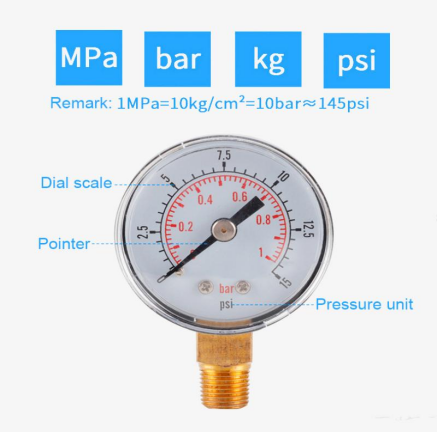

4. Dual scale pressure gauge (0~100psi/0~7bar). The display accuracy is 2.5% across the entire instrument range.

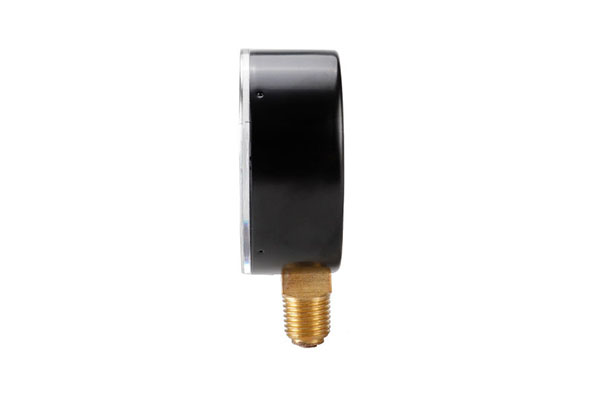

5. It also features a lower mounted male connector with 1/8 "BSPT thread.
application
A pressure gauge is a commonly used measuring instrument for displaying and controlling pressure. Diaphragm pressure gauges are widely used in industries such as chemical, petroleum, metallurgy, mining, and power production, especially in automotive repair workshops, heat pipe networks, water and gas supply systems, etc.
common problem
Q1: What is a pressure gauge?
A1: A pressure gauge refers to an instrument that uses elastic elements as sensitive components to measure and indicate pressures higher than the environment. It is used in almost all industrial processes and research fields, mainly for thermal pipelines, oil and gas transportation, water and gas supply systems, and vehicle maintenance. Mechanical pressure gauges, especially in industrial process control and technical measurement processes, are becoming increasingly popular due to their high mechanical strength and easy production of elastic sensitive components in maintenance workshops.
Q2: How does a pressure gauge work?
A2: The pressure gauge transmits pressure deformation to the pointer through the elastic deformation of sensitive components inside the watch (Bourdon tube, diaphragm box, bellows), and then rotates the pointer through the conversion mechanism of the watch movement to display pressure. This is the working principle of a pressure gauge.
Q3: What is a pressure gauge used for?
A3: Pressure gauges are both pressure gauges and water pressure gauges, mainly used for pressure detection in industries such as metallurgy, power, petroleum, chemical, light industry, and machinery. The pressure gauge relies on measures such as internal filling of damping oil and supporting buffering devices, which have good impact resistance. Suitable for production processes with strong pulse changes or pressure shocks in the measured medium, frequent sudden unloading, and environmental vibrations. Pressure gauges can measure the average pulsating pressure of gases and liquids, thereby overcoming the damage caused by strong pulses of the medium and environmental vibrations, and ensuring the accuracy of readings.
Pressure gauge
Tip 1: The pressure gauge must be vertical. The shell should not be twisted forcefully during installation, and collisions should be avoided during transportation.
2. The pressure gauge should be used at an ambient temperature of -25~55 ° C.
3. The vibration frequency in the working environment is less than 25Hz, and the amplitude is not greater than 1mm.
4. If the ambient temperature is too high and the pressure gauge reading does not return to zero or exceeds the tolerance range, the sealing plug on the upper part of the case can be cut off to allow the instrument cavity to communicate with the atmosphere.
The usage range of the pressure gauge should be between 1/3 and 2/3 of the upper limit.
When measuring corrosive media, potentially crystalline media, and high viscosity media, pressure gauges should be equipped with isolation devices.
7. The pressure gauge should be calibrated regularly (at least once every three months), and any malfunctions should be promptly repaired.
8. If you need a pressure gauge to measure corrosive media, please indicate it when placing an order.
Technical indicators

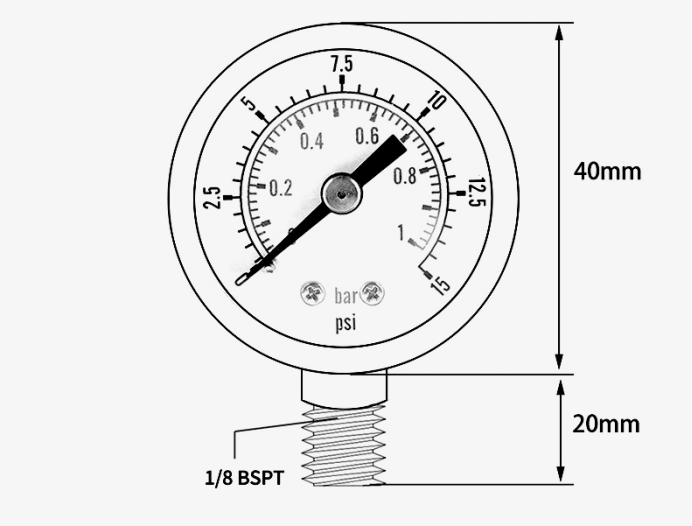

External dimensions
Model: YES-TS-Y408-100psi.
Dial diameter: 40mm.
Installation method: radial.
Range: 0~100 psi, 0~7 bar.
Installation diameter: 1/8.
Thread specification: BSPT.
Size: 6x4x2.5cm.
Material: Stainless steel.
Packaging size: 8.5x6.5x4.5cm.
Product weight: 44g.
Packaging weight: 60 grams.
